Customizable Flying Chair Ride | Extreme Height & Themed Umbrella Design for All Ages

Product Description

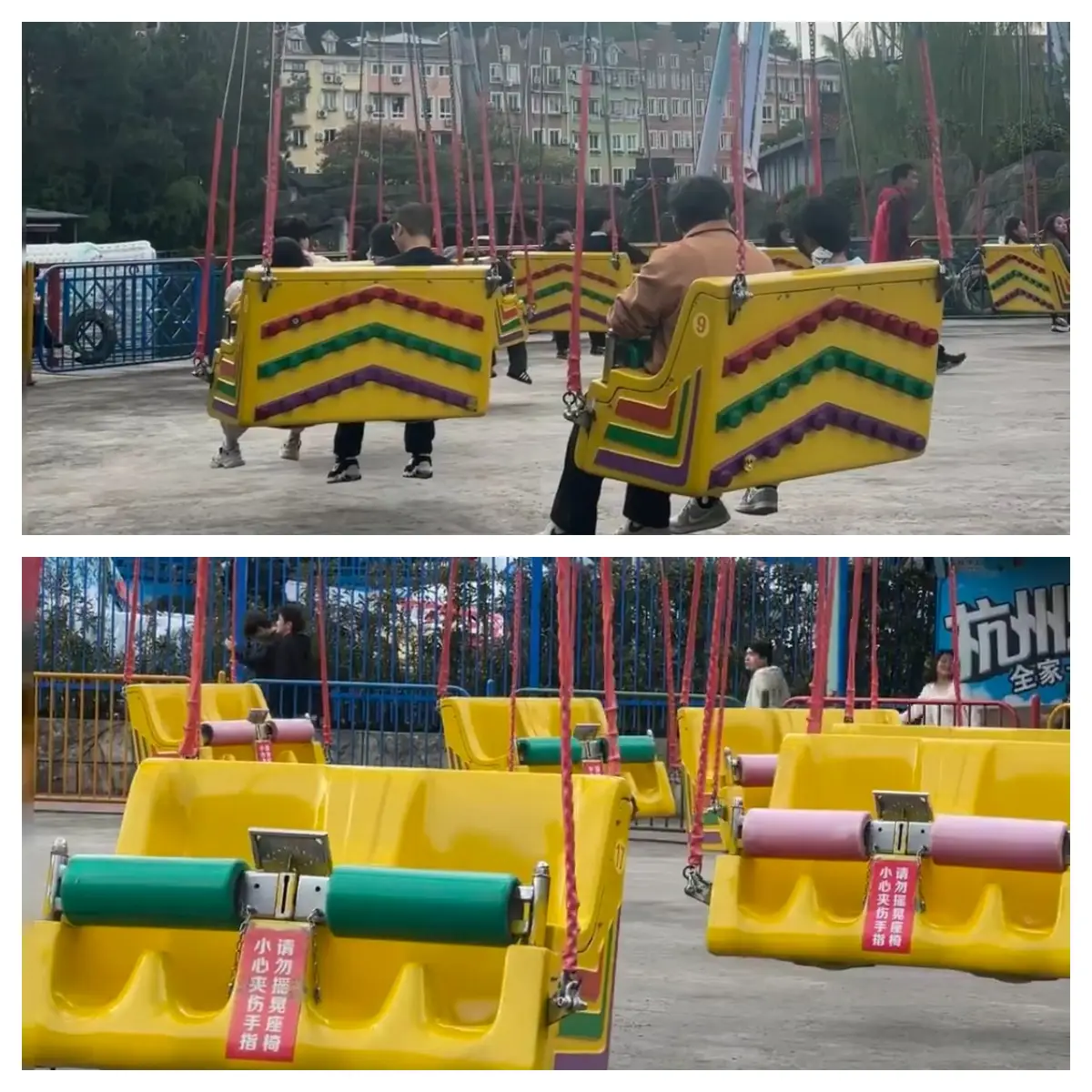

The Flying Chair Ride (Swing Carousel) is a classic amusement attraction that combines gentle rotation with outward-swinging chairs, creating a graceful flying sensation suitable for all ages. With 36 seats arranged on a 10.06-meter diameter rotating platform, riders experience the thrill of flight as centrifugal force lifts their chairs outward at a 15-degree angle while the carousel spins at 13 rpm.
Designed for theme parks, amusement centers, family entertainment venues, and carnival operations, this attraction delivers high-capacity throughput with smooth, reliable operation. The variable frequency motor drive ensures gentle start-up and braking with minimal impact force, while the dual hydraulic cylinder lifting system provides stable, controlled height adjustment for easy loading and unloading.
  • Universal Family Appeal — Gentle flying sensation suitable for all ages (children with adult supervision, teens, and adults), maximizing your addressable market and repeat ride rates.
  • High-Capacity Operation — 36 seats per cycle with efficient dispatch delivers strong hourly throughput (up to 430 riders/hour), making it a revenue-driving anchor for family-oriented venues.
  • Smooth Variable Frequency Drive — VFD-controlled motor ensures gentle start-up and braking with minimal impact force, enhancing rider comfort and extending mechanical service life.
  • Stable Hydraulic Lifting — Dual hydraulic cylinder system provides smooth, controlled platform height adjustment for safe, efficient loading and unloading operations.
  • Premium Visual Presence — Luxurious, atmospheric design with customizable themed canopies and LED lighting packages creates an iconic park landmark that draws crowds from across the venue.

Parameter

Parameter Specification
Ride Type Flying Chair Ride / Swing Carousel
Equipment Category Rotating & Swinging
Equipment Grade Class B
Rider Capacity 36 passengers per cycle
Number of Seats 36 individual swing chairs
Total Equipment Height 7.3 meters (24 feet)
Operating Height 3.8 meters (12.5 feet)
Rotation Diameter 10.06 meters (33 feet)
Rotation Speed 13 rpm
Swing Angle 15° (outward swing from vertical)
Drive Power 26 kW (motor) / 9.6 kW (hydraulic system)
Drive System Variable frequency motor drive (VFD) for smooth start/stop
Lifting System Dual hydraulic cylinder with controlled height adjustment
Footprint (Operating Area) Diameter 18 meters (59 feet)
Design Service Life 10 years
Power Supply 3-phase 380V/50Hz (configurable to 440V/60Hz)
Certifications GB 8408-2018, B-class equipment certification
Installation Requirements Standard park installation (no ground survey required); for complex terrain (coastal, mountain, or special geological conditions), third-party ground survey and secondary foundation design are required
Operating Temperature Range -10°C to +45°C (14°F to 113°F)
Humidity Tolerance Up to 95% RH (non-condensing)
Maintenance Interval Daily pre-operation inspection; monthly detailed maintenance; annual structural certification
Installation Time 15-20 days (with factory installation team on-site)
Commissioning & Training 3-5 days operator training + safety certification (included)
Optional Upgrades (1) Themed canopy fabrication, (2) LED accent lighting package, (3) Synchronized audio system, (4) Custom color scheme, (5) Extended warranty (24/36 months)
