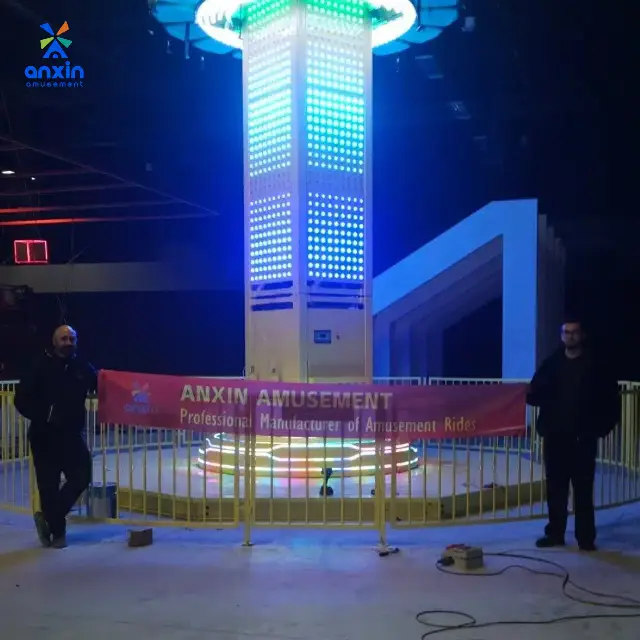

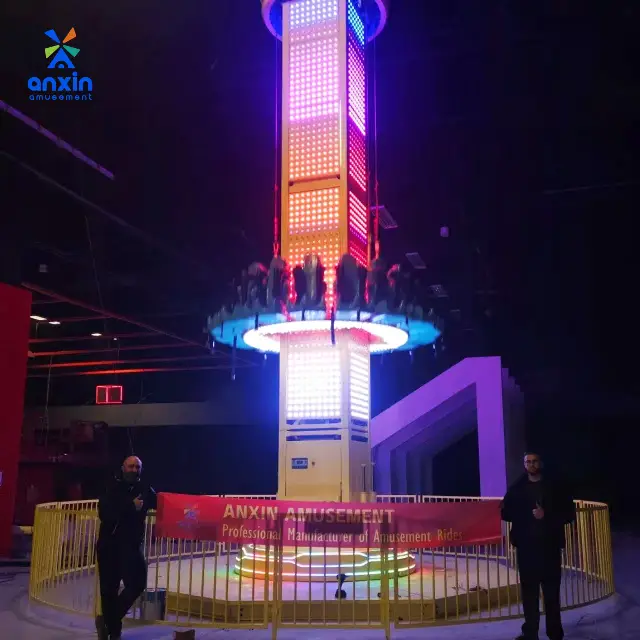

10m Drop Tower Rides

Product Description

The 10m Drop Tower Ride is a compact vertical free-fall attraction designed to deliver genuine adrenaline-pumping thrills in a space-efficient package. Standing at 10 meters with a free-fall drop height of approximately 8.5 meters, this ride strikes the perfect balance between excitement and accessibility — offering heart-racing vertical drops while remaining suitable for a broad demographic of riders, including younger thrill-seekers (ages 8+), teens, and adults.
Built on a proven hydraulic lifting platform with triple-redundant safety architecture, the 10m Drop Tower ensures consistent performance, rapid cycle times, and maximum uptime for high-traffic venues. With a rider capacity of 8-12 passengers per cycle and hourly throughput reaching 360 riders, it delivers exceptional revenue-per-square-meter for operators seeking a reliable, high-demand attraction.
Thrilling Yet Accessible Experience

At 10 meters, the ride generates genuine free-fall excitement (max drop speed ~48 km/h) while maintaining a welcoming profile that encourages repeat rides from families and younger visitors — expanding your addressable market beyond extreme thrill-seekers.

Compact Installation Footprint

Requiring only 7m × 7m of ground space with minimal foundation depth, the 10m Drop Tower is ideal for mid-size amusement parks, family entertainment centers (FECs), traveling carnival operations, and seasonal attractions where space optimization is critical.

Proven Safety Architecture

Equipped with a triple-redundant braking system (regenerative hydraulic, electromagnetic eddy-current, and mechanical friction emergency brakes), individual lap bar + seat belt restraints, and continuous sensor diagnostics, the ride ensures zero-downtime reliability and full compliance with international safety standards (EN 13814, ASTM F24, GB/T 18160).

Theme Integration Ready

The ride structure accepts custom themed wraps, LED accent lighting, and integrated audio systems — allowing seamless incorporation into themed park environments, branded attractions, or immersive entertainment zones.

Rapid ROI Cycle
With high hourly capacity, low maintenance requirements, and proven durability across 15+ years of service life, operators typically achieve payback within 12-18 months of continuous operation.
  • Tower Height: 10 meters (32.8 feet)
  • Free-Fall Height: ~8.5 meters (27.9 feet)
  • Max Drop Speed: ~48 km/h (29.8 mph)
  • Rider Capacity: 8-12 riders per cycle
  • Hourly Throughput: Up to 360 riders/hour
  • Cycle Duration: 50-70 seconds
  • Footprint: 7m × 7m (23ft × 23ft)
  • Drive Power: 37 kW
  • Weight: ~7.5 tons
  • Certifications: CE, ASTM F24, ISO 9001, GB/T 18160
  • Service Life: 15-20 years

Ideal Applications

  • Family Entertainment Centers (FECs)
  • Mid-size theme parks & amusement venues
  • Traveling carnival & seasonal attraction operations
  • Indoor-outdoor hybrid entertainment parks
  • Resort & hotel entertainment zones

Parameter

No. Parameter 04-D3.8V540H7S 04-D3.8V540H19S
1 Equipment Height (m) 13 25
2 Operating Height (m) 7 17
3 Rated Passengers (persons) 16 16
4 Gondola Quantity (units) 1 1
5 Rotation Diameter (m) 3.8 3.8
6 Ascent Speed (m/s) 3.2 3.2
7 Descent Speed (m/s) 8.9 8.9
8 Operating Speed (m/s) 9 9
9 Rotation Speed 8.8 rpm 8.8 rpm
10 Gondola Motion Type Self-rotation with vertical reciprocating motion Same
11 Drive Power (kW) 45 45
12 Total Power (kW) 60 60
13 Footprint Diameter (m) 8 8
14 Power Supply 3N+PEAC 380V/220V 50Hz (3-phase 5-wire) Same
15 Design Service Life 16 years 16 years
16 Total Weight (tons) 10.2 13.2
17 Passenger Limit Total weight ≤ 1120 kg Same
