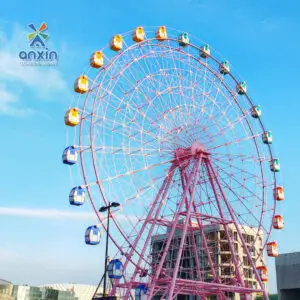

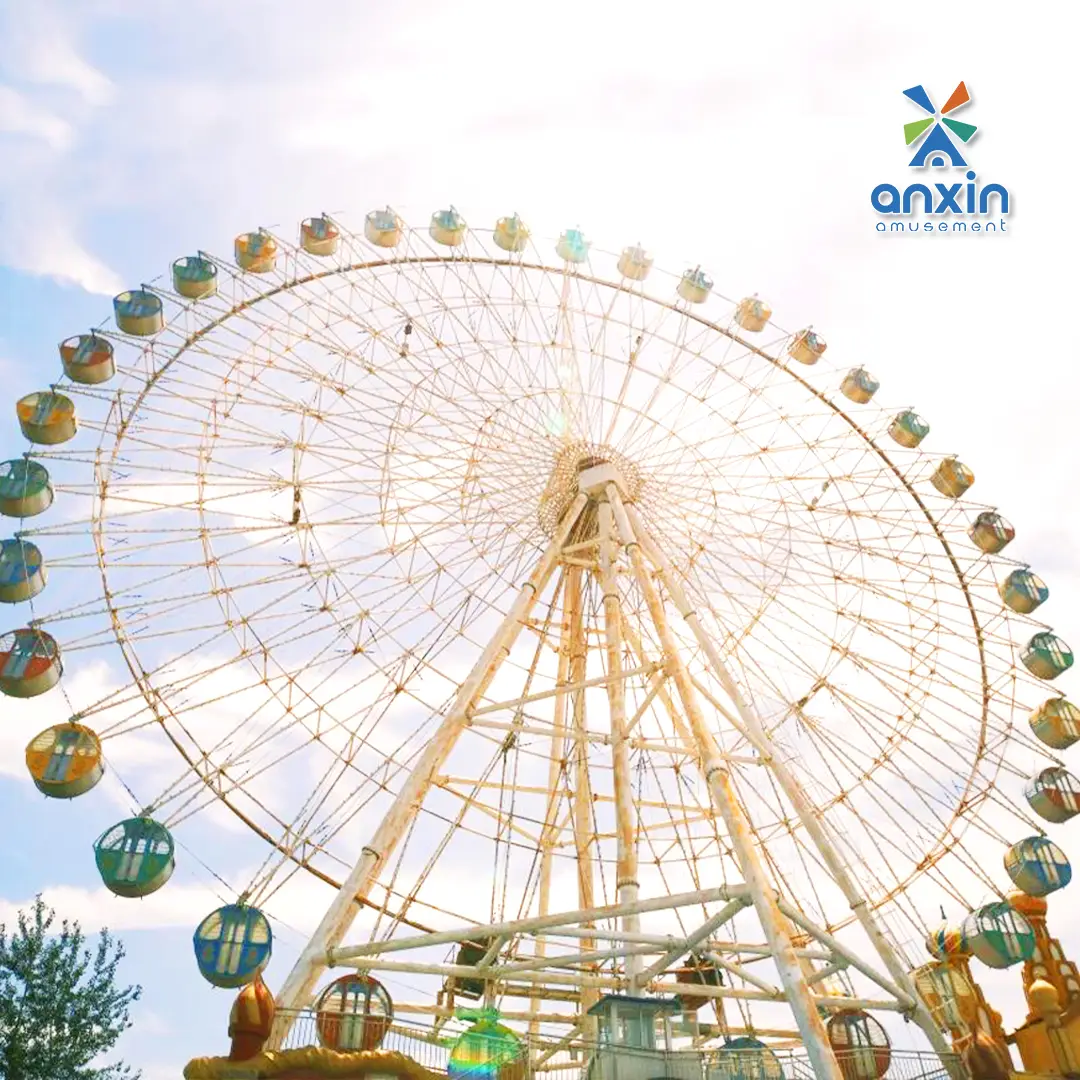

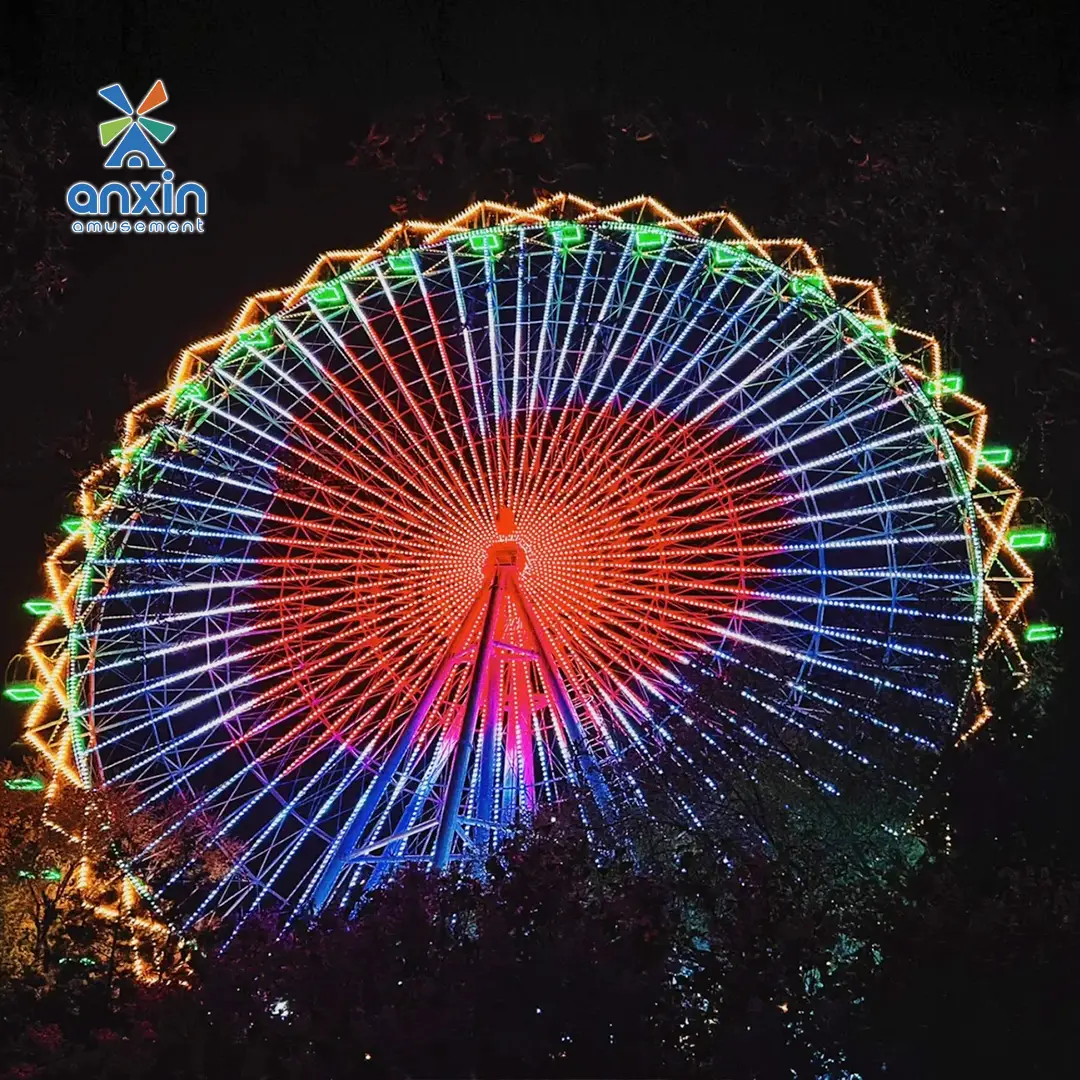

49m Ferris Wheel

Product Description

The 49m Ferris Wheel is a premium observation attraction that delivers commanding visual presence and panoramic experiences for large-scale theme parks, urban entertainment districts, and landmark amusement destinations. Standing at 49 meters tall with a 44.5-meter rotation diameter, this attraction accommodates 128 passengers across 32 gondolas (each seating 4 riders), providing breathtaking aerial views and gentle, relaxing ride experiences suitable for visitors of all ages.

Designed with a fixed installation configuration and full-mechanical drive system, the Ferris Wheel features a 16kW motor drive with 3-phase 5-wire power supply for smooth, efficient operation. The 0.25m/s operating speed and 9.5rpm rotation deliver gentle 8.5-minute cycles that maximize passenger comfort while maintaining strong hourly throughput. As a Class B equipment certification, this model qualifies for provincial inspection approval — avoiding the more complex national-level inspection required for 50m+ Class A attractions.

Key Features:

  • Landmark Visual Presence — 49-meter height with 44.5-meter rotation diameter creates an iconic landmark visible from across the city, drawing crowds and enhancing venue marketability.
  • High-Capacity Operation — 128 passengers across 32 gondolas with efficient cycles delivers exceptional hourly throughput (up to 900+ riders/hour) for high-traffic venues.
  • Class B Certification Advantage — At 49 meters, this model qualifies for provincial inspection approval, avoiding the more complex and costly national-level inspection required for 50m+ Class A attractions.
  • Smooth Mechanical Drive — 16kW motor with full-mechanical transmission ensures reliable, low-maintenance operation with proven durability across 15-year service life.
  • Fixed Installation Stability — Permanent foundation installation provides superior structural stability and long-term reliability for high-volume commercial operations.

Parameter

Parameter Specification
Ride Type Ferris Wheel / Observation Wheel
Equipment Category Observation & Rotating
Equipment Grade Class B (Provincial Inspection Approval)
Rider Capacity 128 passengers per cycle (32 gondolas × 4 riders)
Number of Gondolas 32
Total Equipment Height 49 meters (160.8 feet)
Rotation Diameter 44.5 meters (146 feet)
Operating Speed 0.25 m/s
Rotation Speed 9.5 rpm
Drive Power 16 kW
Power Supply 3-phase 5-wire system (380V/50Hz or 440V/60Hz configurable)
Installation Type Fixed (permanent foundation)
Design Service Life 15 years
Certifications GB 8408-2018, GB/T 18164-2008, B-class equipment certification (Provincial Inspection)
Installation Requirements Third-party ground survey required; secondary foundation design required for complex terrain
Operating Temperature Range -10°C to +45°C (14°F to 113°F)
Humidity Tolerance Up to 95% RH (non-condensing)
Maintenance Interval Daily pre-operation inspection; monthly detailed maintenance; annual structural certification
Installation Time 50-70 days (with factory installation team on-site)
Commissioning & Training 7-10 days operator training + safety certification (included)
Optional Upgrades (1) Premium gondola fabrication (VIP enclosed cabins), (2) Enhanced LED lighting show package, (3) Synchronized audio system, (4) Custom color scheme, (5) Extended warranty (24/36 months)
