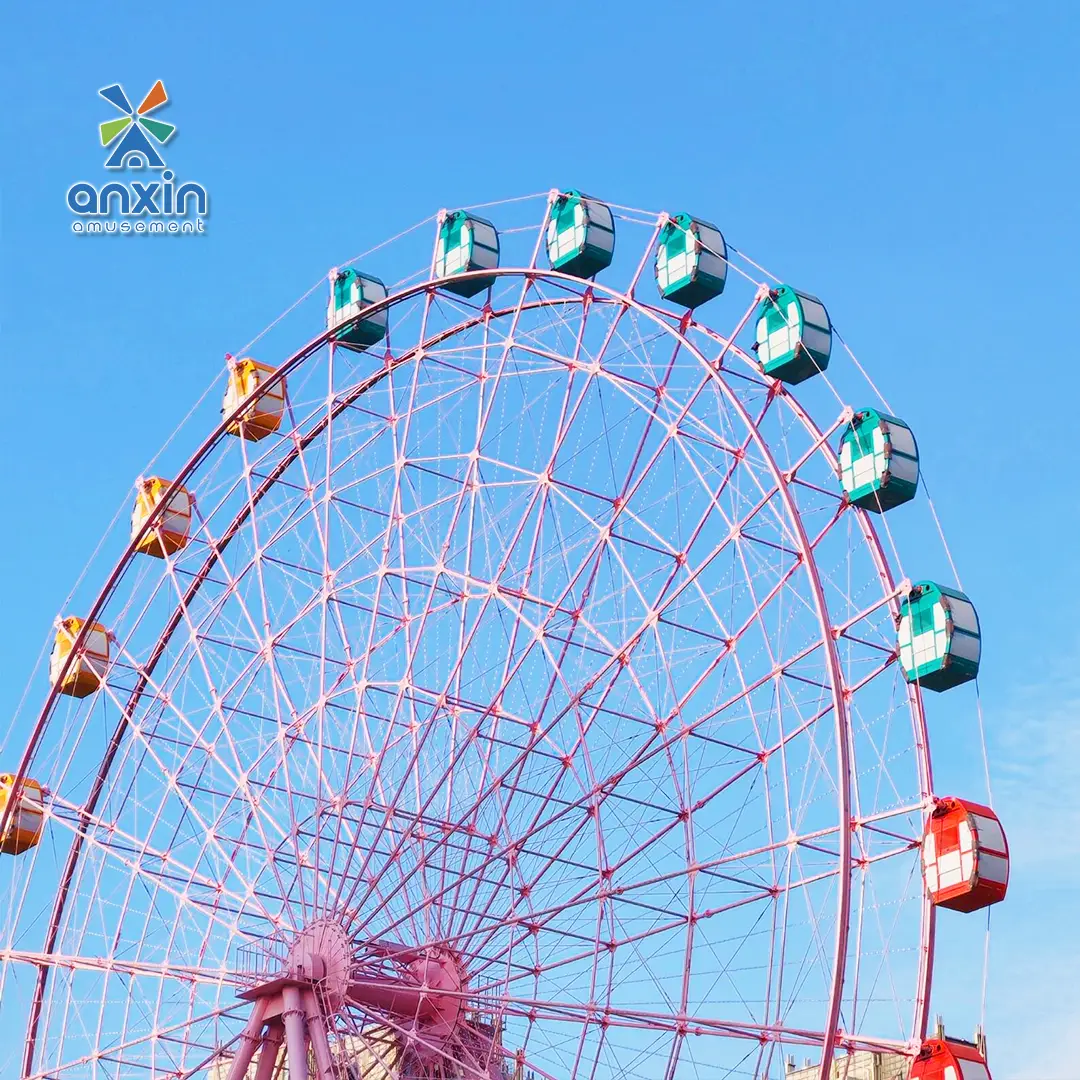

42m Ferris Wheel (Truss Structure)

Product Description

The 42m Ferris Wheel is a landmark observation attraction that combines classic circular rotation with modern truss engineering, creating an iconic centerpiece for theme parks, amusement venues, and urban entertainment districts. Standing at 42 meters tall with a 37-meter rotation diameter, this attraction accommodates 96 passengers across 24 gondolas (each seating 4 riders), delivering panoramic views and gentle, relaxing ride experiences suitable for all ages.
Designed with a full-mechanical drive system and friction tire power transmission, the Ferris Wheel features enhanced shock absorption and reduced maintenance requirements compared to traditional chain-drive models. The 11kW motor drive with 3-phase 5-wire power supply ensures smooth, efficient operation, while the backup power system provides emergency rescue capability for passenger safety. Integrated LED lighting effects create stunning nighttime visual displays that extend operating hours and enhance venue atmosphere.
Key Features:
  • Landmark Visual Presence — 42-meter height with 37-meter rotation diameter creates an iconic park landmark visible from miles away, drawing crowds and enhancing venue marketability.
  • High-Capacity Operation — 96 passengers across 24 gondolas with efficient 8.5-minute cycles delivers strong hourly throughput (up to 680 riders/hour) for high-traffic venues.
  • Friction Tire Drive System — Single-shaft transmission with reducer gearbox and friction tire power delivery provides superior shock absorption and smoother operation compared to traditional chain drives.
  • Backup Power Safety — Emergency backup power system enables passenger rescue during power failures, ensuring maximum safety compliance and operational reliability.
  • Stunning Nighttime Effects — Integrated LED lighting package creates dazzling visual displays after dark, extending operating hours and transforming the attraction into a city beautification landmark.

Parameter

Parameter Specification
Ride Type Ferris Wheel / Observation Wheel
Equipment Category Observation & Rotating
Equipment Grade Class B
Rider Capacity 96 passengers per cycle (24 gondolas × 4 riders)
Number of Gondolas 24
Total Equipment Height 42 meters (137.8 feet)
Center Height 23.5 meters (77.1 feet)
Rotation Diameter 37 meters (121.4 feet)
Gondola Height 2.4 meters (7.9 feet)
Ride Cycle Duration 8.5 minutes per revolution
Drive Power 11 kW
Drive System Single-shaft transmission with reducer gearbox and friction tire power delivery
Backup Power Emergency backup power system for passenger rescue
Lighting System Integrated LED lighting package
Footprint (Operating Area) 26m × 22m (85.3ft × 72.2ft)
Power Supply 3-phase 5-wire system (380V/50Hz or 440V/60Hz configurable)
Design Service Life 10 years
Total Weight Over 100 tons (heavier than competing models for enhanced stability)
Certifications GB 8408-2018, GB/T 18164-2008, B-class equipment certification
Installation Requirements Third-party ground survey required; secondary foundation design required for complex terrain
Operating Temperature Range -10°C to +45°C (14°F to 113°F)
Humidity Tolerance Up to 95% RH (non-condensing)
Maintenance Interval Daily pre-operation inspection; monthly detailed maintenance; annual structural certification
Installation Time 40-60 days (with factory installation team on-site)
Commissioning & Training 7-10 days operator training + safety certification (included)
Optional Upgrades (1) Premium gondola fabrication (VIP enclosed cabins), (2) Enhanced LED lighting show package, (3) Synchronized audio system, (4) Custom color scheme, (5) Extended warranty (24/36 months)
