10m / 11m — Compact & Accessible
Ideal for family entertainment centers (FECs), traveling carnivals, and mid-size amusement venues. These heights deliver genuine free-fall excitement (~48-52 km/h drop speed) while remaining accessible to younger thrill-seekers (ages 8+). Compact footprint (7m × 7m to 8m × 8m) maximizes space efficiency and revenue per square meter.
15m / 17m — Mid-Range Thrill Zone
Perfect for theme parks, resort entertainment zones, and seasonal attractions seeking a balance between excitement and broad demographic appeal. At 15-17 meters, the ride generates true heart-racing free-fall intensity (~55-62 km/h) with expanded rider capacity (12-16 passengers per cycle), making it a high-throughput workhorse for busy venues.
24m / 25m — Mega Drop Experience
Designed for flagship theme parks, landmark amusement destinations, and record-breaking attractions. These towering heights deliver extreme free-fall adrenaline (~75-80 km/h drop speed) with massive visual presence, creating iconic park landmarks visible from miles away. Engineered for 16-24 riders per cycle with advanced synchronized sound and lighting integration.
Modular Engineering Platform
All height configurations share the same proven mechanical foundation — precision hydraulic lifting systems, triple-redundant braking architecture, and PLC-based automated controls — ensuring consistent reliability and simplified maintenance regardless of tower scale.
Triple-Redundant Safety Architecture
Every configuration includes regenerative hydraulic brakes, electromagnetic eddy-current brakes, and mechanical friction emergency brakes, plus individual lap bar + seat belt restraints and continuous sensor diagnostics. Full compliance with EN 13814, ASTM F24, ISO 9001, and GB/T 18160 standards.
Theme Integration Ready
All tower heights accept custom themed wraps, LED accent lighting, integrated audio systems, and synchronized show effects — enabling seamless incorporation into branded attractions, IP-themed environments, or immersive entertainment zones.
Rapid ROI Cycle
With proven durability across 15-20 years of service life, low maintenance requirements, and high hourly throughput (up to 360 riders/hour on standard configurations), operators typically achieve payback within 12-24 months depending on venue traffic and selected height.

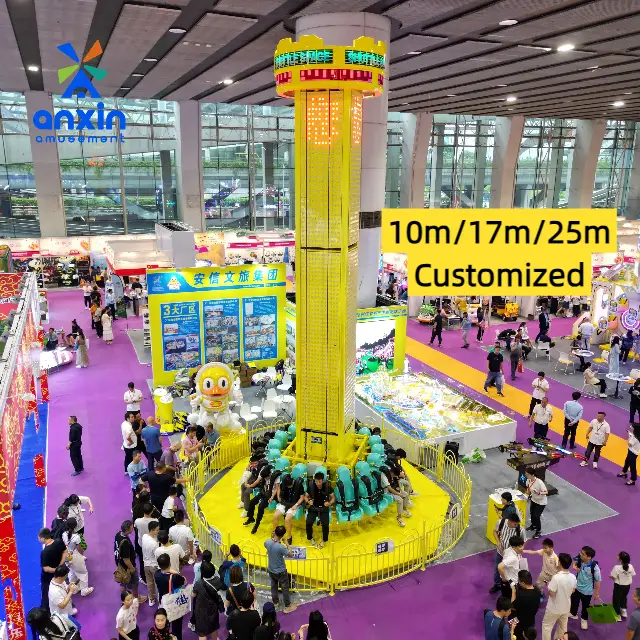

- Height Range: 10m / 11m / 15m / 17m / 24m / 25m (custom heights available)
- Rider Capacity: 8-24 riders per cycle (varies by height)
- Hourly Throughput: Up to 360 riders/hour (standard configurations)
- Drop Speed: 48-80 km/h (varies by height)
- Footprint: 7m × 7m (compact) to 12m × 12m (mega)
- Drive Power: 37 kW (compact) to 90 kW (mega)
- Foundation Type: Foundation-fixed or foundation-free mobile options
- Certifications: CE, ASTM F24, ISO 9001, GB/T 18160
- Service Life: 15-20 years
Beyond height selection, our drop tower platform supports:
- Gondola Configuration: Single-row circular, dual-row circular, or custom themed gondolas
- Rotation Capability: 360° rotating gondola (optional)
- Lighting Package: LED tower accent lighting, gondola underglow, synchronized show effects
- Audio System: Integrated multi-speaker systems with custom audio input
- Control Upgrades: Remote diagnostic monitoring, multi-language HMI, cloud-based fleet management
- Theme Wraps: Full custom fabrication for branded environments or IP integration
- Foundation Options: Fixed installation or mobile (foundation-free) configurations
Every configuration undergoes rigorous factory acceptance testing (FAT), including 500+ consecutive cycle runs, emergency brake validation, wind-load simulation, and structural fatigue analysis before shipment. On-site installation, operator training, and 24-month warranty coverage ensure your attraction opens on time and performs flawlessly — from compact FEC installations to mega drop landmarks.
| No. |
Parameter |
04-D3.8V540H7S |
04-D3.8V540H19S |
| 1 |
Equipment Height (m) |
13 |
25 |
| 2 |
Operating Height (m) |
7 |
17 |
| 3 |
Rated Passengers (persons) |
16 |
16 |
| 4 |
Gondola Quantity (units) |
1 |
1 |
| 5 |
Rotation Diameter (m) |
3.8 |
3.8 |
| 6 |
Ascent Speed (m/s) |
3.2 |
3.2 |
| 7 |
Descent Speed (m/s) |
8.9 |
8.9 |
| 8 |
Operating Speed (m/s) |
9 |
9 |
| 9 |
Rotation Speed |
8.8 rpm |
8.8 rpm |
| 10 |
Gondola Motion Type |
Self-rotation with vertical reciprocating motion |
Same |
| 11 |
Drive Power (kW) |
45 |
45 |
| 12 |
Total Power (kW) |
60 |
60 |
| 13 |
Footprint Diameter (m) |
8 |
8 |
| 14 |
Power Supply |
3N+PEAC 380V/220V 50Hz (3-phase 5-wire) |
Same |
| 15 |
Design Service Life |
16 years |
16 years |
| 16 |
Total Weight (tons) |
10.2 |
13.2 |
| 17 |
Passenger Limit |
Total weight ≤ 1120 kg |
Same |
